Chassis: Self-supporting anti-corrosion Aluminium structure
Axles: single 9000 Kg capacity - 1st liftable, 2nd and 3rd fixed
Brakes: disk Ø 370 mm
Braking system: pneumatic with 2 lines according to ECE regulations with 2 channel EBS and RSS
Parking Brakes: spring brakes with pneumatic controls Suspensions: pneumatic type with electronic control
Wheels: disc 19.5 x 14.00 and M spigot
Tyres: 445/45R19.5 160J single King
Pin: 2 demountable from below
Landing legs: two speed with rocking feet

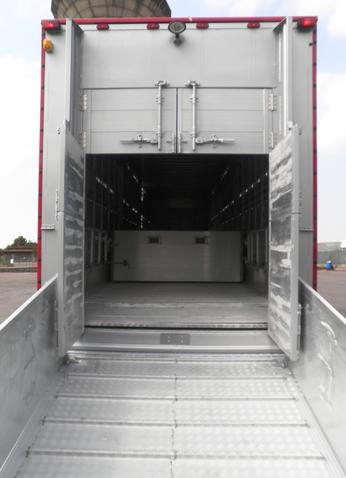

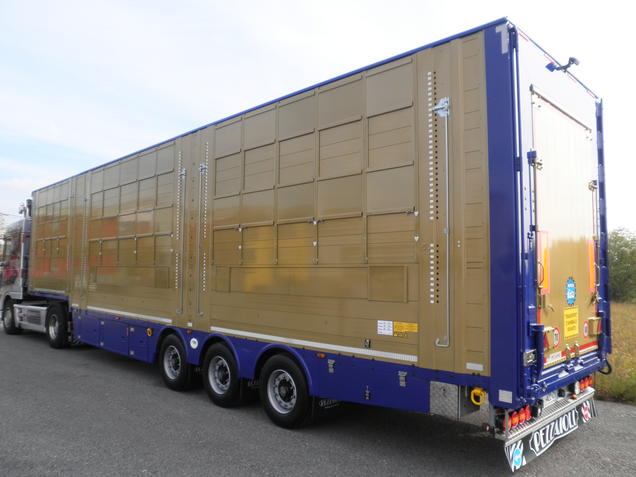

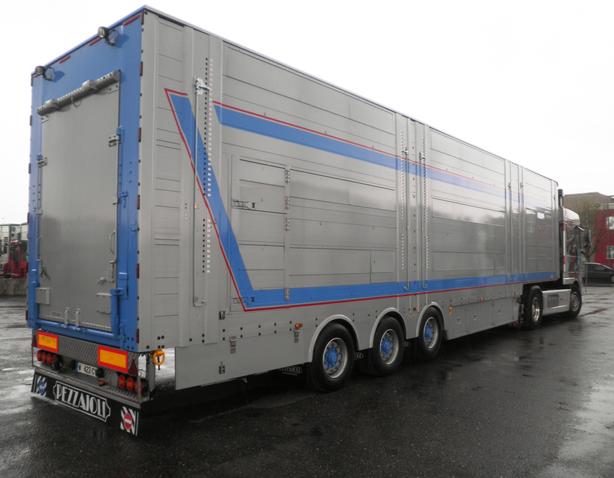

Body: box unit for livestock 2+2, 2+3, 3+3, 3+4 or 4+4 loading decks with hydraulic controls, raising lowering roof on lower part and on goose neck, side doors and back doors, wide tool boxes under the body, internal and external working lights
Electrohydraulic system: completed with automatic safety device in accordance with Machines Directive and Work Safety Institute (approval TUV n° 24 03 9761 002)

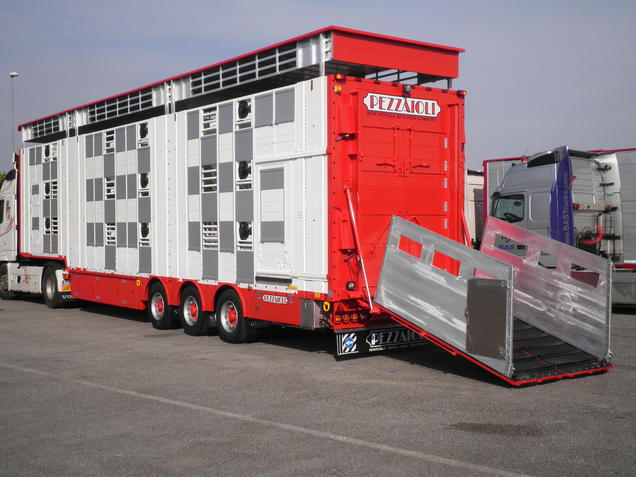

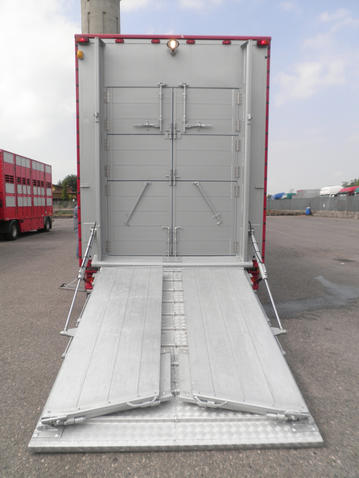

Loading ramp: hydraulically controlled, anti-slip, with incorporated side guards and working as barn doors if necessary

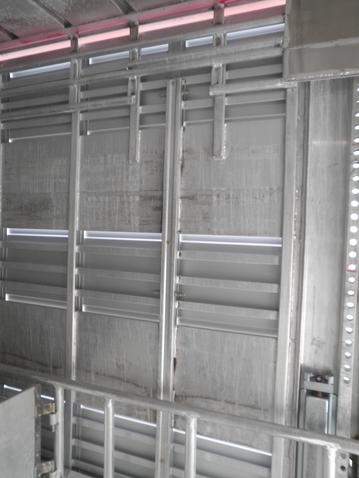

Partition gates: in aluminium or zinc coated steel with over-flap for larger animals

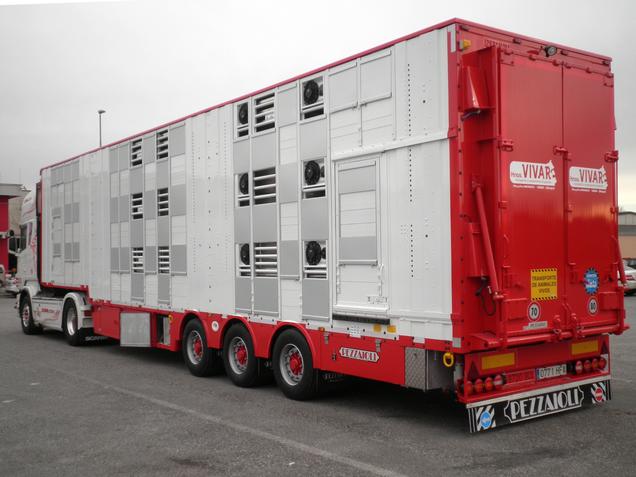

Ventilation system: autonomous with 15 side fans Ø 255 mm. Max air flow 19500 m3/h
